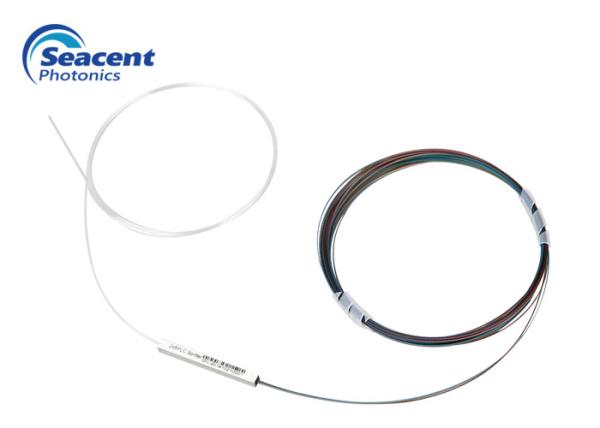

2x8 Plc Fiber Splitter Bare Device With Wide Operation Temperature

Name: 2x8 Plc Fiber Splitter Bare Device With Wide Operation Temperature
Brand: Seacent
Price: 1 USD

Quality 2x8 Plc Fiber Splitter Bare Device With Wide Operation Temperature wholesale

Brand Name : Seacent

Model Number : 2x8 type bare device

Certification : ISO9001 , ROHS

Place of Origin : Shenzhen,China

MOQ : 1 piece

Payment Terms : L/C, T/T, D/P

Supply Ability : 100,000 pieces per month

Delivery Time : 5-8 work days

Product name : bare fiber PLC Splitter

IL : ≤10.5 dB

RL : ≥55 dB

Polarization dependent loss : ≤ 0.25 dB

Uniformity : ≤1.0 dB

Fiber type : G657A1 or customized

Contact Now

Fiber Optic PLC Splitter bare fiber 2x8 type G657A1 1m customized in FTTH

Seacent Photonic provides high quality Fiber Optic PLC Splitter, it is an optical power device based on quartz plate planar of light wave technology, which is widely used in local side or termination of Passive Optical Network (EPON, BPON, GPON etc.) for splitting of optical signal. It offers superior optical performance, high stability and high reliability; meet various application requirements in different environments.

Product Features:

Low loss
stable polarization
Superior channel uniformity
900µm loose tube fiber for easy stripping, splicing, or terminating
Wide Operation Temperature
Certified by Telcordia GR.1209 and GR.1221

Applications:

LAN, WAN
Metro Networks
Fiber to the Home
Test instrument
Passive Optical Networks
Fiber optic sensor
PON-FTTX network

Specifications:

Item	Parameters
Insertion Loss	≤10.5 dB
Uniformity	≤1.0 dB
PDL	≤0.25 dB
Return Loss	≥55 dB
Directionality	≥55 dB
Fiber length	1.0m or customized
Working wavelength	1260-1650 nm
Temperature stability	≤0.5 dB
Working temperature	-40℃- 85℃
Maximum power	1000 nW

Ordering Information:

Product type

Fiber diameter

Inlet and fiber length

Package size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0148=1X48

0164=1X64

1128=1X128

1=250um

2=900um

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

1x2 4x4x40 mm

to or

1x8 4x5x40 mm

1x12

to 4x7x60 mm

1x32

1x48

to 4x12x60 mm

1x64

1x128 6x20x80 mm
