1x64 Bare Fiber Optical Plc Splitter Low Insertion Loss With Even Ratior

Name: 1x64 Bare Fiber Optical Plc Splitter Low Insertion Loss With Even Ratior
Brand: Seacent
Price: 1 USD

Quality 1x64 Bare Fiber Optical Plc Splitter Low Insertion Loss With Even Ratior wholesale

Brand Name : Seacent

Model Number : 1x64 bare fiber

Certification : ISO9001 , ROHS

Place of Origin : Shenzhen,China

MOQ : 1 piece

Payment Terms : L/C, T/T, D/P

Supply Ability : 100,000 pieces per month

Delivery Time : 5-8 work days

Product name : Fiber Optic PLC Splitter

ratior : 1*2/1*4/1*8/1*16/1*32/1*64/1*128

Application : FTTB FTTX FTTH PON CATV

IL : ≤20.1 dB

RL : ≥55 dB

Operating temperature : -40℃ to 85℃

Contact Now

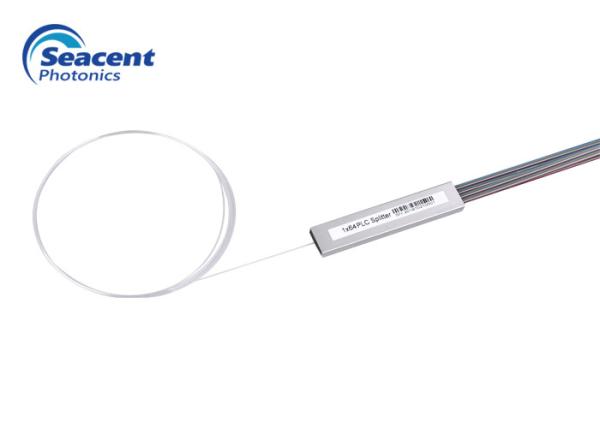

Fiber Optic PLC Splitter 1x64 bare fiber G657A1 customized with even ratior

1×64 Bare Fiber PLC Splitter, Singlemode, 250μm Fiber, No Connector

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.

Applications:

WAN , LAN CATV& Metro Networks
Telecommunication Networks
FTTH,FTTX,FTTB
Passive Optical Networks
Value Added Module

Product Features:

Compact design
Optical performance 100% factory tested
High stability
Low Insertion Loss,
Back Reflection and PDL
Certified by Telcordia GR.1209 and GR.1221

Specificatrion:

Item	Parameters
IL (dB)	≤20.1
Uniformity (dB)	≤1.8
Polarization dependent loss (dB)	≤0.35
RL (dB)	≥55
Fiber length (m)	1.0 or customized
Fiber type	G657A1 or customized
Temperature stability (dB)	-40℃--85℃(≤0.5)
Working temperature °C	-40℃--85℃
Storage temperature °C	-40℃--85℃
Maximum power (nW)	1000

Ordering Information:

Product type

Fiber diameter

Inlet and fiber length

Package

size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0148=1X48

0164=1X64

1128=1X128

1=250um

2=900um

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

1x2 4x4x40 mm
to or
1x8 4x5x40 mm

1x12
to 4x7x60 mm
1x32

1x48
to 4x12x60 mm
1x64

1x128 6x20x80 mm
