1x3 Bare Fiber Optic PLC Splitter Customized Length Good Channel Uniformity

Name: 1x3 Bare Fiber Optic PLC Splitter Customized Length Good Channel Uniformity
Brand: Seacent
Price: 3.99 USD

Quality 1x3 Bare Fiber Optic PLC Splitter Customized Length Good Channel Uniformity wholesale

Brand Name : Seacent

Model Number : 1x3 type bare device

Certification : ISO9001 , ROHS

Place of Origin : Shenzhen,China

MOQ : 1 piece

Price : USD 3.99-4.99 per piece

Payment Terms : L/C, T/T

Supply Ability : 100,000 pieces per month

Delivery Time : 5 work days

Product name : PLC Splitter bare device

Fiber type : G657A1 or customized

Return loss : ≥55 dB

Insertion loss : ≤6.1 dB

Fiber length : 1m Customized

Uniformity : ≤0.5 dB

Contact Now

Fiber Optic PLC Splitter 1x3 bare fiber 1m length customized

PLC Splitter also named Planar lightwave circuit splitter, is a quartz-based integrated waveguide optical power distribution device with small size. It is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.

Product Features:

Low loss and stable polarization
Optical performance 100% factory tested
High stability and reliability
Good channel uniformity
Certified by Telcordia GR.1209 and GR.1221

Applications:

LAN, WAN & Metro Networks
FTTH
Passive Optical Networks
PON-FTTX network
wired TV internet

Specifications:

Item	Parameters
IL	≤6.1 dB
Uniformity	≤0.5 dB
PDL	≤0.25 dB
RL	≥55 dB
Directionality	≥55 dB
Fiber length	1.0m or customized
Working wavelength	1260-1650 nm
Temperature stability	-40℃- 85℃ (≤0.5 dB)
Working temperature	-40℃- 85℃
Maximum power	1000 nW

Ordering Information:

Product type

Fiber diameter

Inlet and fiber length

Package size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0148=1X48

0164=1X64

1128=1X128

1=250um

2=900um

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

1x2 4x4x40 mm

to or

1x8 4x5x40 mm

1x12

to 4x7x60 mm

1x32

1x48

to 4x12x60 mm

1x64

1x128 6x20x80 mm

Product Tags:

plc fiber splitter

bare plc splitter

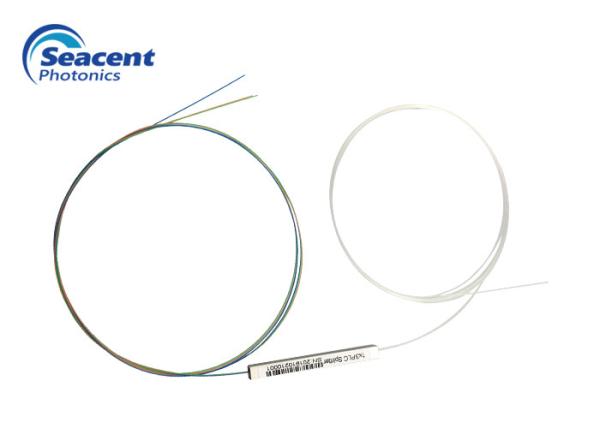

1x3 Bare Fiber Optic PLC Splitter Customized Length Good Channel Uniformity Images
