WDM Filter For CATV Fiberoptic System ROHS Approved Fiber Optical

Name: WDM Filter For CATV Fiberoptic System ROHS Approved Fiber Optical
Brand: Seacent
Price: 1 USD

Quality WDM Filter For CATV Fiberoptic System ROHS Approved Fiber Optical wholesale

Brand Name : Seacent

Certification : ISO9001,ROHS

Place of Origin : Guangdong, China

MOQ : 1 piece

Payment Terms : L/C, D/P, T/T

Supply Ability : 50,000 pieces per month

Delivery Time : 5-7 workdays

Transmission end insertion loss (dB) : 0.8 (0.6 Typ.)

Transmission end isolation (dB) : 30

Flatness (dB) : 0.3

Polarization dependent loss : 0.1

Return loss : 45

Working temperature (℃) : -40～85

Storage temperature (℃) : -40～85

Application : DWDM Network Add/Drop System CATV Fiberoptic System

Contact Now

High Isolation FWDM Splitter 1310 / 1490 / 1550nm 80km Distance ROHS Compliant

Description:

FTTX Filter WDM module is based on Thin Film Filter (TFF) technology.The device combines or separates light at different wavelengths in a wide wavelength range. They offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability.

Dense wavelength division multiplexer(DWDM) is based on the membrane filter technique and proprietary non-flux metal bonding micro-optics packaging design, within ITU wavelengths to achieve uplink and downlink. It provides ITU channel center wavelength, low insertion loss, high channel isolation, low power consumption, wide passband characteristics, no glue loop, excellent thermal stability and reliability and so on. In a telecommunications network system, it can be used for uplink or downlink optical signal.

Specification:

Parameters
Working wavelength (nm)	T13/R15	T15/R13	T13/R1415	T14R1315	T15R1314	T1415R13	T1314R15
Transmission wavelength range (nm)	1310+/-40	1550+/-40	1310+/-40	1490+/-10	1550+/-10	1490+/-10& 1550+/-10	1310+/-40& 1490+/-10
Reflection wavelength range (nm)	1550+/-40	1310+/-40	1490+/-10& 1550+/-10	1310+/-40& 1550+/-10	1310+/-40& 1490+/-10	1310+/-40	1550+/-10
Transmission end insertion loss (dB)	0.8 (0.6 Typ.)
Reflective Insertion Loss (dB)	0.6 (0.4 Typ.)
Transmission end isolation (dB)	30
Reflector Isolation (dB)	15
Flatness (dB)	0.3
Polarization dependent loss	0.1
Polarization mode dispersion	0.1
Return loss	45
Directionality	50
Maximum withstand optical power (mw)	500
Working temperature (℃)	-40～85
Storage temperature (℃)	-40～85
Package specifications(mm) (Φ×L)	Φ5.5*L34

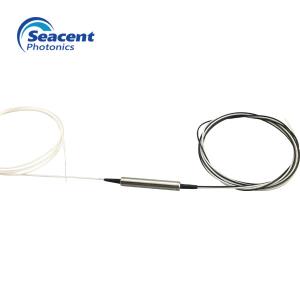

WDM Filter For CATV Fiberoptic System ROHS Approved Fiber Optical

Features:

Low Insertion Loss
High Channel Isolation
Optical path epoxy free
Excellent thermal stability and reliability
High Isolation
RoHS Compliant

Applications:

● CWDM and DWDM Network
● Add/Drop System
● CATV Fiberoptic System
● Metro/Access Network
● Fiber Optical Amplifier

Ordering inforamation:

LWD	-	XX	X	XX	X	XX	-	X	X	X
		Port Configuration	WDM Type	Center Wavelength	Fiber Type	Output Fiber Length		COM Port Connector	Pass Port Connector	Reflection Port Connector
L-Lintegrity		01=1*1	F=FWDM	1=T13/R15	B=250um bare fiber	10=1.0m		0=None	0=None	0=None
W=WDM		02=1*2		2=T15/R13	L=900um loose tube	12=1.2m		1=FC/UPC	1=FC/UPC	1=FC/UPC
D=Device				3=T13/R1415	T=900um tight buffer	15=1.5m		2=FC/APC	2=FC/APC	2=FC/APC
				4=　T14R1315		……		3=SC/UPC	3=SC/UPC	3=SC/UPC
				5=　T15R1314		XX=Customized		4=SC/APC	4=SC/APC	4=SC/APC
				6=T1415R13				5=LC/UPC	5=LC/UPC	5=LC/UPC
				7=T1314R15				6=LC/APC	6=LC/APC	6=LC/APC
								X= Customized	X= Customized	X=Customized
